The 3D Printing Revolution in Sand Casting: Transforming the Foundry Industry

A New Era in Manufacturing

The foundry industry is undergoing a remarkable transformation as 3D printing technologies are increasingly integrated into traditional sand casting operations. This shift is not a distant future possibility—it is happening now, and it is redefining what is possible in metalcasting. For ferrous foundries serving critical sectors such as oil & gas, power generation, mining, and water treatment, additive manufacturing presents a competitive edge by allowing the production of complex, high-quality components with unprecedented speed and design flexibility. Additive manufacturing, especially 3D sand printing, is reshaping the landscape of modern foundries and why this innovation is a must-watch (and must-adopt) trend.

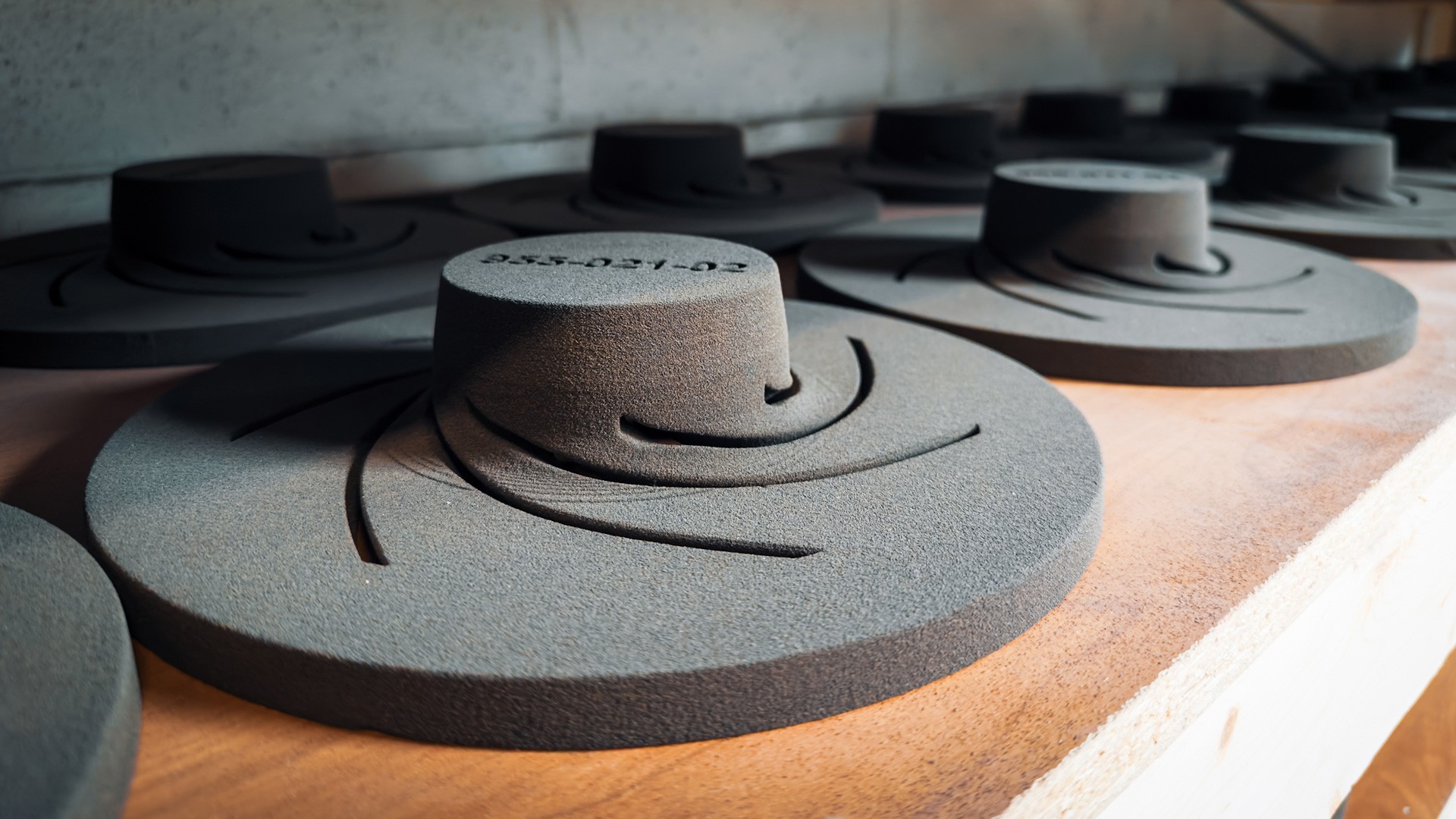

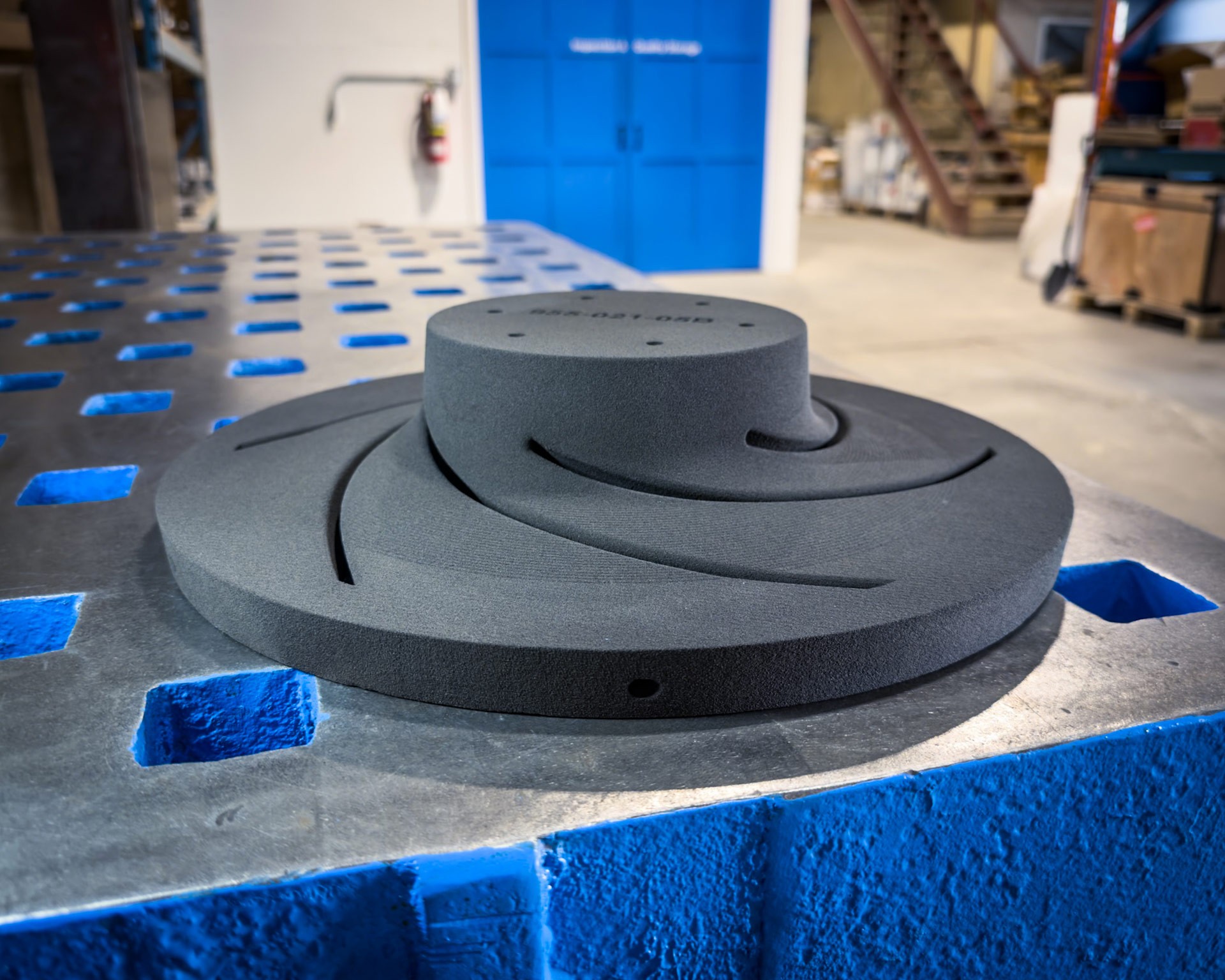

What is 3D Sand Printing? 3D sand printing, also known as binder jetting, is an additive manufacturing process where sand is layered and bonded using a specialized binder to form molds or cores directly from digital CAD files. This process bypasses traditional pattern making and tooling, significantly reducing setup time. It allows engineers to create highly detailed, complex geometries that would be impossible—or extremely costly—to achieve using conventional means. Once printed, these sand structures are used just like traditional molds: molten metal is poured into them to produce finished castings.

Key Benefits for Foundries

1. Design Freedom and Complexity: With 3D sand printing, foundries are no longer constrained by the limitations of traditional tooling. Engineers can design castings with internal channels, lattice structures, undercuts, and multi-core assemblies—all in a single build.

2. Reduced Lead Times: 3D printed molds and cores can be created in a matter of hours or days, significantly accelerating the product development cycle. This is a game-changer for industries that require rapid prototyping or fast-turnaround replacements.

3. Lower Tooling Costs: Eliminating or minimizing the need for hard tooling can result in substantial cost savings, especially for low-volume or highly customized parts.

4. Faster Iteration and Customization: Engineers can tweak designs, print new molds, and test updated versions rapidly. This iterative capability fosters innovation and allows for close collaboration between foundries and customers.

5. Improved Casting Quality: Enhanced dimensional accuracy, reduced porosity, and cleaner surface finishes contribute to better casting outcomes. Reduced post-processing and rework further improve productivity.

Applications in Oil & Gas, Power, and Mining

The heavy-duty industries that rely on robust, high-performance components are seeing immediate value in 3D printing for sand casting. In oil & gas, custom fittings, valves, and pressure-containing components can be rapidly produced to exacting standards. In power generation, turbine housings, impellers, and cooling structures benefit from the internal complexity made possible by additive manufacturing. In mining, machinery parts customized for harsh operating environments—often in remote locations—can be fabricated and delivered more quickly than traditional supply chains allow.

Additional real-world applications include:

• EmergenInternal manifolds and flow-optimized castings designed to reduce energy loss and improve performance.

• Emergency replacement parts created on-demand to minimize unplanned downtime.

• Reverse-engineered legacy components for older equipment where original tooling is no longer available.

Case Studies & Industry Adoption

Across the globe, forward-looking foundries are embracing 3D sand printing to gain a competitive edge. General Motors has successfully applied 3D sand cores in engine development, cutting design cycles and improving component performance. Aerospace and defense contractors are using the technology to create highly customized mission-critical parts.

Meanwhile, smaller jobbing foundries are integrating desktop 3D printers into their workflow to create hybrid processes—combining the best of digital manufacturing with their existing expertise in traditional casting. The outcome is greater efficiency, improved quality, and new revenue streams from high-value, low-volume work that previously wasn’t cost-effective.

Addressing the Challenges

While 3D printing offers tremendous opportunities, one of the most pressing challenges for foundries is not equipment or training—but access to digital design data. Some projects involve legacy tooling or outdated 2D drawings, making CAD files unavailable or incomplete. To unlock the full potential of additive manufacturing, Alloy Casting must generate accurate 3D CAD models either by reverse engineering from existing parts or scanning legacy patterns.

This process can range from interpreting historical engineering prints to digitizing physical tooling using 3D scanning technologies. Converting these into printable files often involves both technical expertise and collaboration with customers to validate designs. Though time-intensive, this step is critical to transitioning traditional workflows into efficient, digitally enabled ones—and once completed, it enables rapid mold production, faster iterations, and long-term savings in tooling management.
